Australila Stanard Prefab House Modular Home With Light Steel Structure Frame 2 Story House

Australila Stanard Prefab House Modular Home With Light Steel Structure Frame 2 Story House

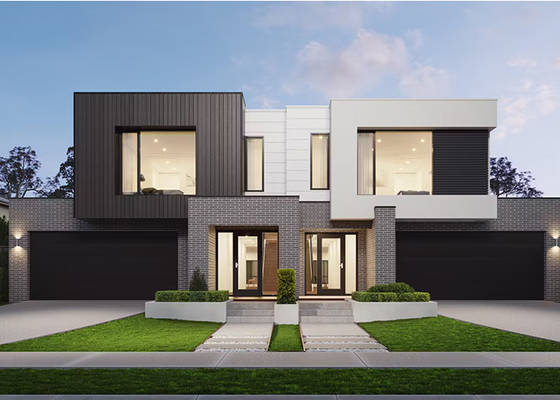

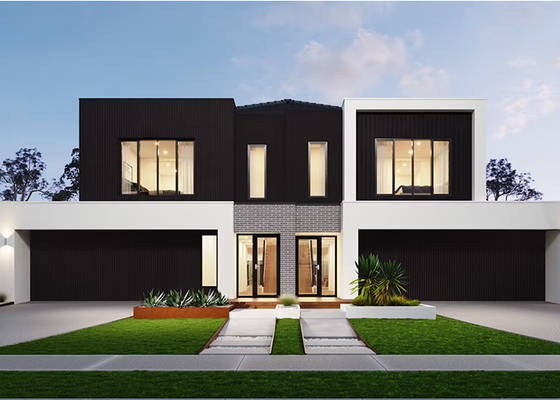

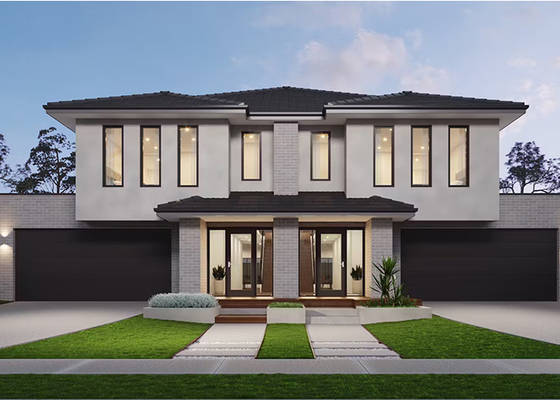

Sierra Vista House

8 bedrooms  6 Bathroom  4 Living 2 Garage  535.8m²

Step into the Sierra Vista House (Model DPBL-25-57), where sophisticated duplex design meets the practical needs of modern living. This isn't just a shared-wall property; it's a blueprint for a harmonious, dual-household community, offering both connection and absolute autonomy under one elegantly structured roof.

Layout & Design:

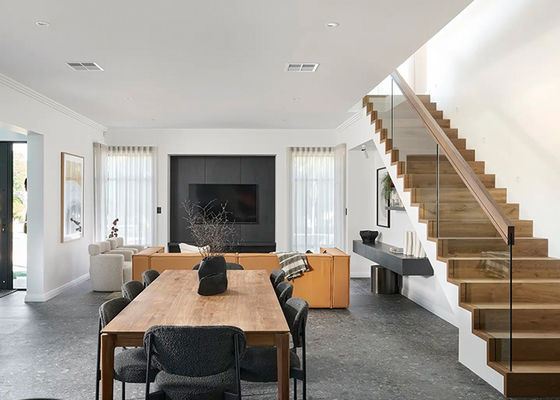

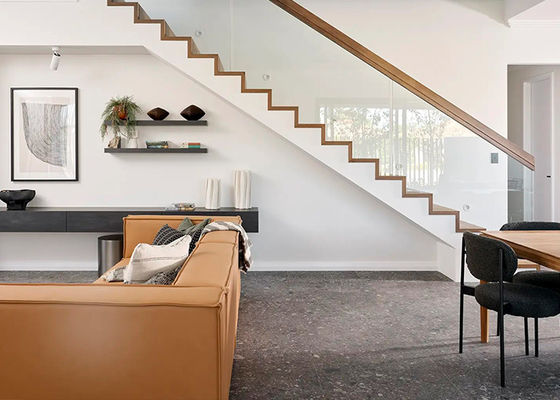

Effortless Single-Level Living Upon entering your private foyer, the practical layout immediately shines. A dedicated single-car garage offers seamless access. A versatile guest suite—comprising a bedroom and a directly accessible bathroom—is strategically placed near the entrance, ideal for visitors or as a private main-floor retreat. Moving further in, the home opens up to a vibrant social hub where an open-concept kitchen flows effortlessly into the dining area. This space is crowned by a living room defined by its expansive glazed walls, which frame the outdoors and bathe the entire area in natural light.

• Product parameters:



  Name:	Sierra Vista House
  Size:	13511×24434mm
  Ground floor area:	298.87sqm
  First Floor Area:	236.93sqm
  Total Area:	535.8sqm
  Model:	DPBL-25-57



Applications:

Hotel, House, Office, etc.

Product Description:

DeepBlue earthquake proof prefabricated bungalow is based on a light gauge steel frame system with high-performance finishing materials. The whole house can be assembled within a couple of hours by 4workers.
the materials are the following:
1. Main structure: 89mm light gauge steel framing system based on AS/NZS 4600 standard.
the structure can be design to resist 50m/s wind and 9degree earthquake.
2. Roof structure: 89mm light gauge steel truss system.
3. Chassis: 89mm light gauge steel flooring chassis
4. flooring: 18mm fiber cement board with vapor barrier and bamboo flooring or wooden flooring, Pvc carpet, etc.
5.Wall cladding: 16mm PU insulated steel sandwich panel with beautiful decoration
6. interior lining: 9m fiber cement board, water-proof, termite-proof, security and healthy
7. ceiling: 8mm Pvc ceiling panel
8. insulation: 89mm glass wool insulation with good soundproof performance.
9.windows: PVC sliding windows
10.exterior door: high-quality aluminum sliding windows
11.interior door: painted wood door
12.bathroom: shower, washbasin, toilet included
13. roofing: corrugated steel roofing with the gutter system
14. veranda deck: W.P.C veranda flooring.

Specifications:

ISO standard steel structure house .one or two also three floors available. fireproof, heat insulation, wind, and earthquake resistance. green, energy-saving. economically.

Why Choose Light Gauge Steel Structure?

1)Lifetime for structure: 100 years.
2)Earthquake resistance: mix more than 8 grades.
3)Wind resistance:max 60m/s.
4)Fire resistance: all the materials used can be fire-resistant.
5)Snow resistance: max 2.9KN/m²as required
6)Heat insulation:100 mm in thickness can match 1 m thickness of the brick wall.
7)High acoustic insulation:60db of exterior wall 40db of interior wall
8)Insect prevention: Free from the damages by insects, such as white ants
9)Ventilation: a combination of natural ventilation or air supply keep the indoor air fresh and clean
10)Packing and delivery: 140SQM/ 40'HQ container for structure only and 90SQM/ 40'HQ container for structure with decorating materials.
11)Installation: the average is one worker one day install one SQM.
12)Installation guide: dispatch engineer to guide on site.

Design code:

(1)AISI S100 North American Specification for the Design of Cold-Formed Steel Structural Members published by the American Iron and Steel Institute (AISI) in the United States.
(2)AS/NZS 4600 Australian/New Zealand Standard-Cold-formed steel structures jointly published by Standards Australia and Standards New Zealand.
(3)BS 5950-5 Structural use of steelwork in building-Part 5. Code of practice for the design of cold-formed thin gauge sections published by BSI in the UK.
(4)ENV1993-1-3 means Eurocode 3: Design of steel structures; Part 1.3: General rules, Supplementary rules for cold-formed thin gauge members.

Resistant to various weather conditions, due to its light gauge steel framing system, DeepBlue Mobile Homes can resist winds up to 50m/s, 50cm snow loads as well withstand earthquakes due to its special steel structure technology.

The DeepBlue Mobile Houses manufacturing technology is truly a mature product characterized by flexibility and innovative design and solution.

Based on our patented foldable technology, transportation and erection can be done in a very simple and convenient way in order to save lots of time, energy, and unnecessary expenses.

Your first choice, Deepblue Prefabrica
